Tubular Stranders

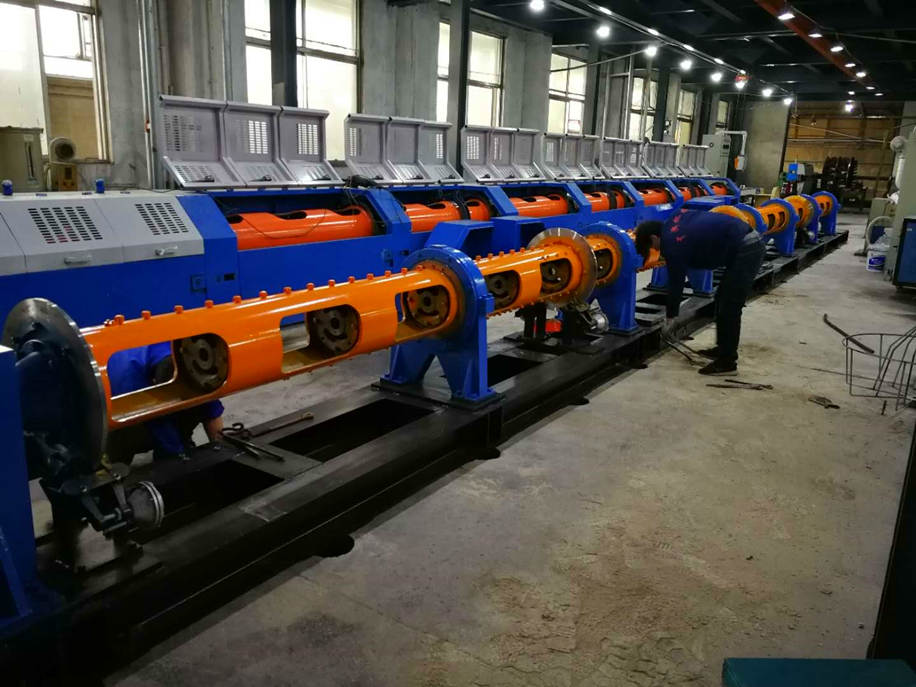

165-250/1+6/1+12/1+18 Steel Wire Rope Tubular Stranders

  • Usage:Stranding
  • Product name:165/6 steel wire rope tubular stranding machine
  • Function:stranding steel wire
  • Strand construction:1+6/1+12/1+18
  • Rotating speed:1800-2600
  • Pitch control:change gears
  • Brake:hydraulic brake
  • Voltage:380V 50HZ
  • Product Detail
  • Parameters
  • Video

165-250/1+6/1+12/1+18 Steel Wire Rope Tubular Stranders.


1.Use:

This kind of machine is used to make copper stranded wire,steel-core aluminium stranding wire and

steel rope.it also can be used to stranded steel wire and insuated wire.







Model

Technical Parameter

250/1+6  (tubular strander with ridding wheels)

1

Rotating speed (r/min)

1000

2

Inlet wire/strand range

(mm)

0.35-1.2

3

Maximum Stranded Outer

Diameter(mm)

5

4

Pitch control

Controlled by changing gear box

5

Stranding pitch(mm)

6.08-78.7

6

In drum bobbin size(mm)

Φ250(250×175×120,Inner hole:φ25.5)

7

Traction wheel diameter(mm)

Φ477

8

Motor power(KW)

7.5

9

Braking method

Controlled by hydraulic brake system

10

Torsion direction

S or Z

11

Take-up bobbin size(mm)

Customized

12

Strand construction


1+6


Technical Parameter
        165/6
        165/12
         165/18
Rotating speed (r/min)
1800
1200
1100
Single wire diameter(mm)
0.167-0.6
0.167-0.6
0.167-0.6
Maximum Stranded outer diameter (mm)
2
2
2
Traction wheel diameter (mm)
318*2
318*2
477.5*2
Strand construction
1+6
1+12
1+18
Lubricant method
/
Grease
Grease
Pitch control
Controlled by Frequency converter or Gearbox
