Planetary Stranders

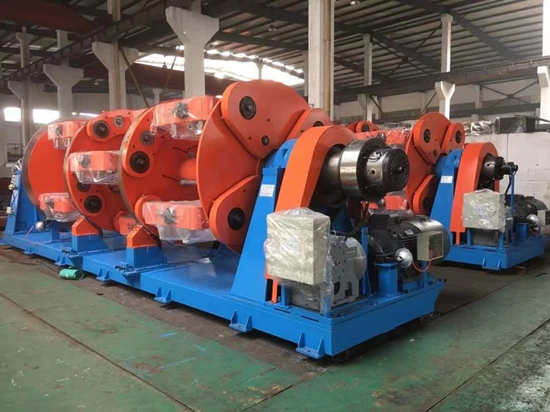

Planetary closer / Planetary stranding machine / Planetary strander line / Steel wire armouring machine / Steel wrie rope twisting machine.


1.Application:
·The machine is used for stranding Cu, Al wire, ACSR and insulated wires with back-twist. It also can steel-armoring or Cu-screening cables.


2. Features:
•100% back-twist
•For the stranding of profiled wires, both types of machine can be operated without back-twist (0%).
•Number of bobbins per stranding cage from 6 to 36, max. 96 for armouring.
•Stranding bobbin dimensions from 315 to 630 mm flange diameter for standard machines.

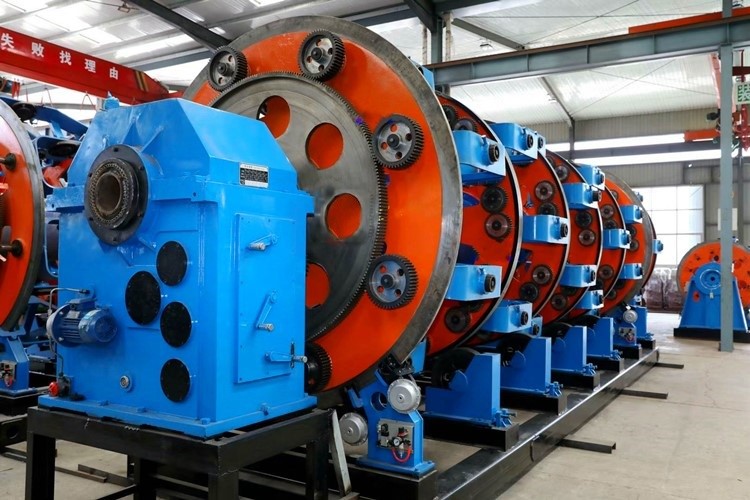

•Machine bearing system: Underroller type with the stranding cage supported on underroller bearings. Compact. design with the stranding cage supported by bearings housed in the main drive stand and the outer bearing support stand, Hysteresis Tension.

3. Technical Parameter:

Model

JLY-315

JLY-400

JLY-500

JLY-630

Single wire Dia.

Φ1-1.6mm

Φ1-4.0mm

Φ1.2-5.0mm

Φ1.5-5.0mm

Pitch

26-749mm

43-766mm

41.47-732.10mm

50.2-900.5mm

Max rotation speed

108rpm

90rpm

88.5rpm

70rpm

Max linear speed

25m/min

30m/min

34.7m/min

20m/min

Max input wire OD

Φ5mm

Φ7mm

Φ10mm

Φ12mm

Pay-off in cage

PND315

PND400

PND500

PND630

Capstan wheel Dia.

1000mm

1600mm

2000mm

2500mm

Take-up

PN1250

PN1600

PN2000

PN2500

Motor power

18.5kw

22kw

37kw

55kw


4. Driving Form:

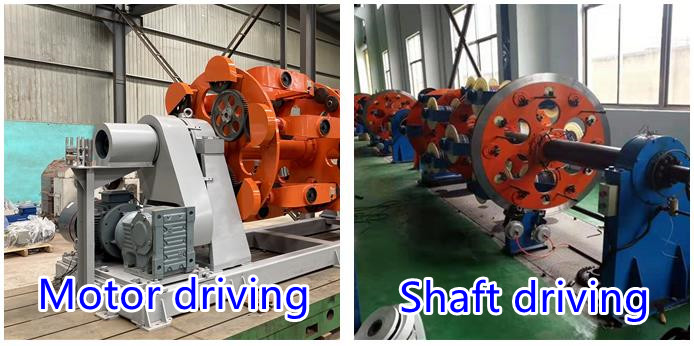

Planetary stranding machine from capstian tech

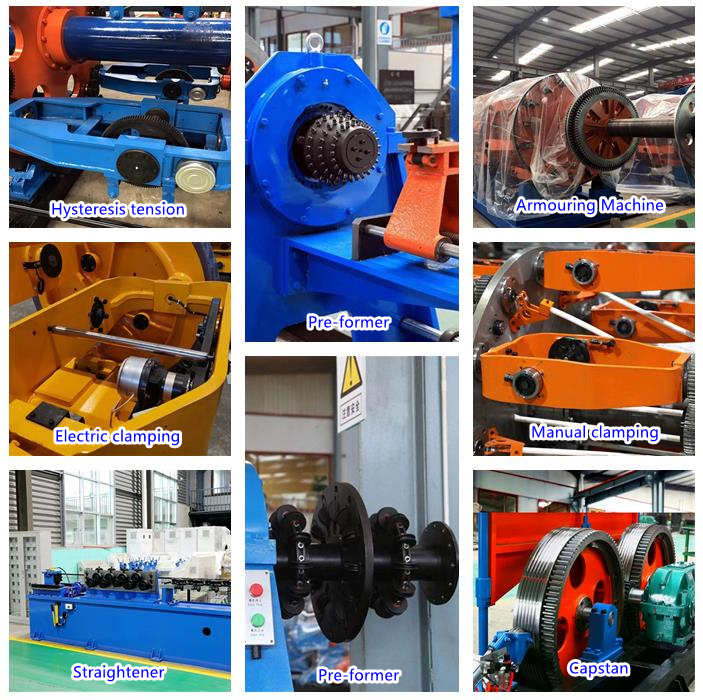

5. Pre-former, tension, clamping:

plaentary closer from capstian tech


6. Professial steel wire rope twsting machine:


7. Professional steel wrie armouring machine:

steel wire armouring machine from capstian tech
