Wire Drawing Machines

Copper rod breakdown machine / Aluminium rod breakdown machine / Wire Drawing Machines /  Intermediate wire drawing machine / Fine wire drawing machine.


1.RBD Machine Series:

Rod breakdown machine for copper or aluminum.
• Single step capstans having each one its own drawing die.
• Exchangeable long life tungsten carbide drawing rings.
• Finishing capstan independently driven by AC motor
• HMI+PLC control system for drawing speed synchronization and die schedule auto arrangement.
• Optionally supplied with all necessary accessories.

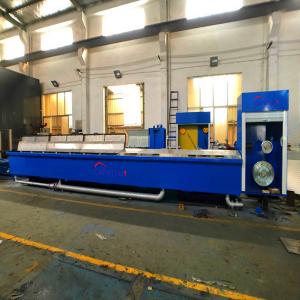

Rod breakdown machine from capstian tech


2. Intermediate Wire Drawing Machine with Annealer:

Medium copper wire drawing machine.
• 4 multi-step capstans having each one its own drawing
ring.
• Exchangeable long life tungsten carbide drawing rings.
• HMI+PLC control system for drawing speed synchronization and die schedule auto arrangement.
• Optionally supplied with all necessary accessories such
as pointing and stringing device, filters, etc.

Intermediate Wire Drawing Machine with Annealer from capstian tech


3. Fine Wire Drawing Machine:

This type is suitable for drawing fine bare copper & copper-clad-aluminium wire.
It has the following characteristics:
1)High quality flat belt and synchronous belt drive,with advantages of easy maintenance and low noise.
2)Dual motor drive,it can reduce the slip rate in the wire extension,And improve the quality of wire.

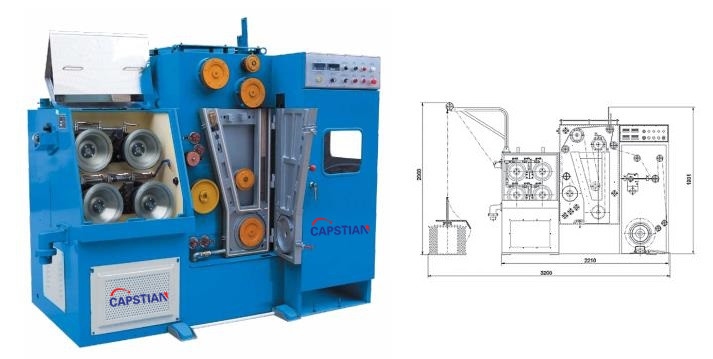

fine wire drawing machine from capstian
