Production process:

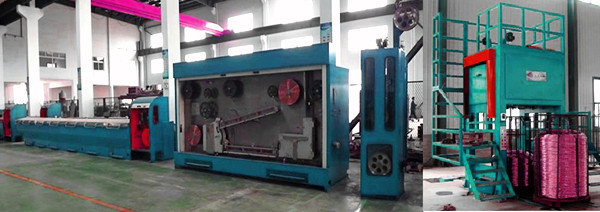

1. Coppwer rod processing:

Wire drawing machine is belonging to the production of metal products preproceessing equipment, the purpose is to make wire and rod after wire drawing processing, iwre and rod with the diameter,roundness, inside metallographic structure, smooth surface and straightening straightness are up to standard parts and other metal products production raw material processing requirement.

RBD machine + horizontal annealer + tension pare +coiler machine+ double spooling take-up.

2. Coppwer wire to be stranding:

total 3 kinds of machines to choose according to your requirement.

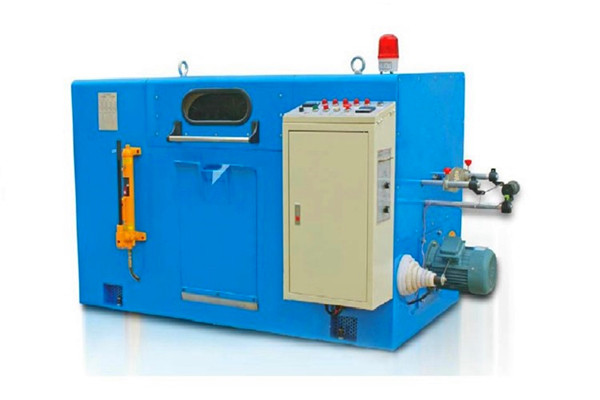

(1). 500-800 high speed stranding machine for 1.5-16mm2.

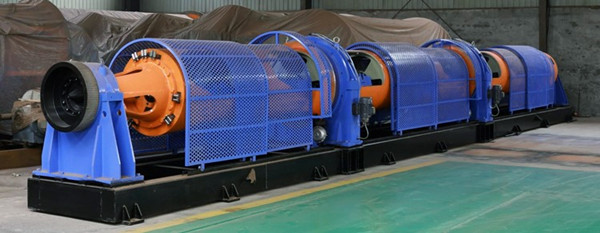

(2) tubular stranding machine for 10-35mm2.

Application: mainly used for bare copper, aluminum stranded wire core, also used for multi-core insulated stranded.

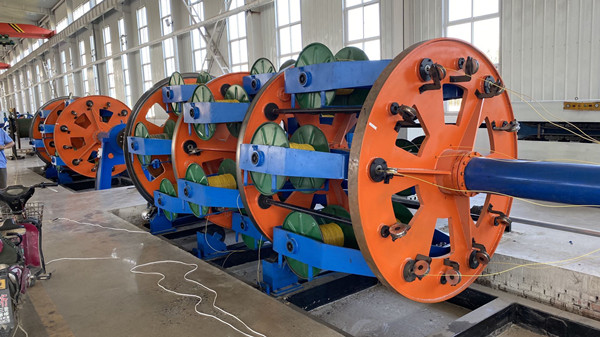

（3）High speed rigid frame stranding machine for 35-400mm2.

Application: mainly used for copper and aluminum conductors cables twisted wire system compacting.

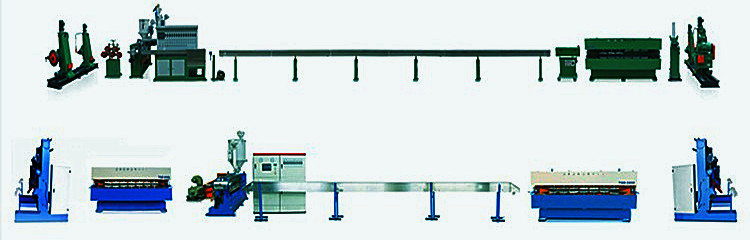

3. Core wire extruding process.

The wire core mainly used 70-120 type extrusion production lines to achieve.

4. Core wire to be cabling.

Generally, two kinds of machines are required, one is informal stranding: cantilever single twisting machine, and the other is formal stranding: planetary stranding machine.

(1).800-1250 type cantilever single twisting machine:

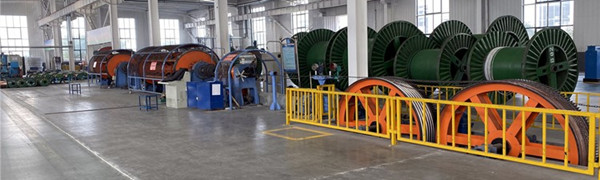

(2).Planetary stranding machine:

Application: used for steel core wire, bare copper,bare stranded aluminum wire, also for rubber cables, multi strand power cable and all kinds of communications wire into a cable.

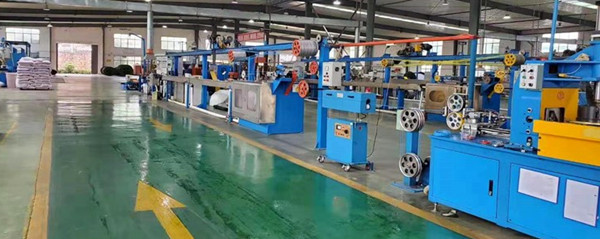

5. Insulation jacket extrusion production process:

insulation outer layer mainly adopts 120-200 type extrusion production line machine to achieve.
