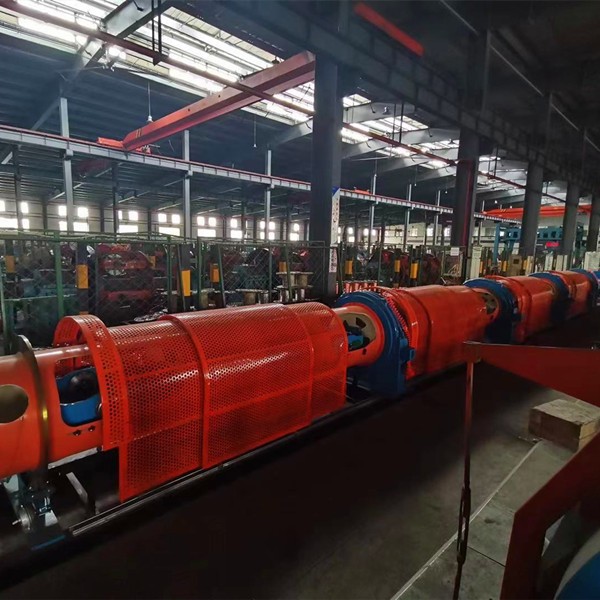

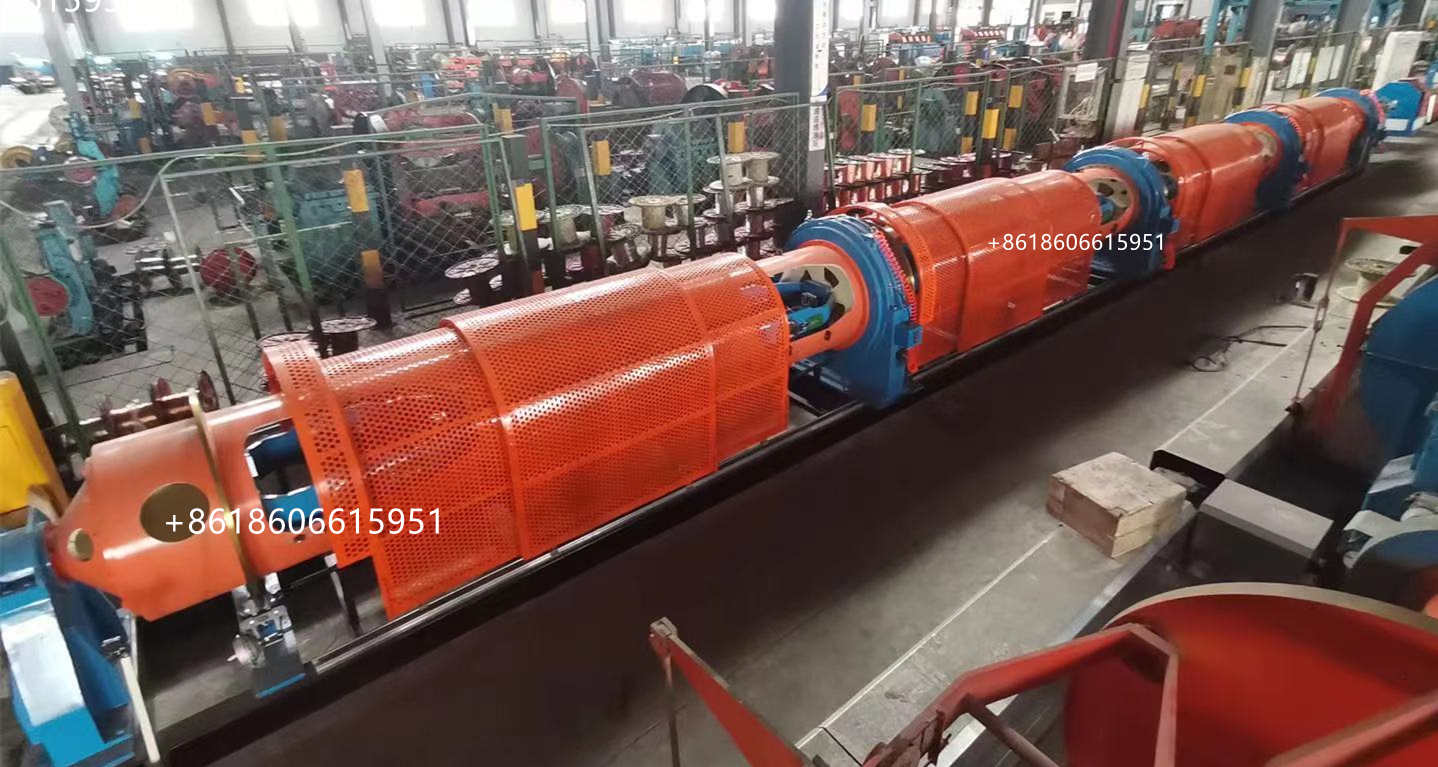

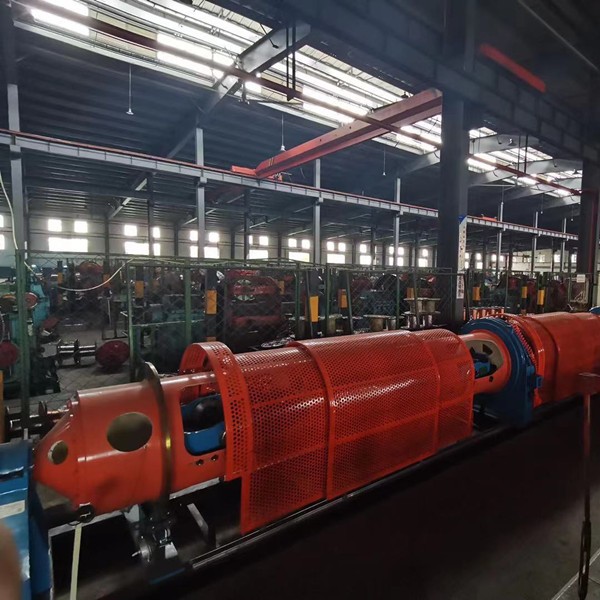

2.1

Single wire diameter

Ø 1.8～5.0mm

2.2

Max strand external diameter

15mm

2.3

Strand pitch range

55.76～423.77mm

2.4

Cage max rotation speed

360r/min

2.5

Traction line speed range

22.304～169.5m/min

2.6

Traction wheel diameter

Ø1400+Ø1400

2.7

Bobbin size in cage

PND630

2.8

Take-up bobbin size

PN1000～PN2000

2.9

Main motor power

75KW

3.1

630 center pay-off frame

1 set

3.2

6 bobbins strand cage

1 set

3.3

Assembling die holder

1 set

3.4

Positive side straightening device

1 set

3.5

Ø1400+Ø1400 double wheel capstan device

1 set

3.6

Ø 2000 end shaft type take-up and traverse frame

1 set

3.7

Transmission system

1 set

3.8

Electrical control system

1 set

3.9

Adaptive electric meter counter (digital display)

1 set

3.10

Anchor bolt

1 set

3.11

Safety cover

1 set

4.2.1

Adapt bobbin size

PND630

4.2.2

Cage max rotation speed

360r/min

4.2.3 The end-shaft type of the pay-off frame, the frame adopts high-quality plate numerical control cutting and overall bending process, with few welding positions, clean appearance, high mechanical strength after high temperature annealing, and final overall boring processing with high precision and stable operation.

4.2.4 The spool adopts pneumatic release, air clamping, and pneumatic stop. It is convenient, fast and safe to load and unload the spool. It has a pneumatic self-locking function. The cradle base is equipped with a spool bracket. The pay-off in the cradle frame adopts the friction belt tension control device, and the manual operation surface is adjusted, which has a long life and is not easy to malfunction.

4.2.5 At the exit of the pay-off end in each pay-off frame, a set of tic-tac-toe wire rollers is added, and a set of wire rollers is also added to the outside of the outlet shaft head, which is directly extended to the outer guide wheel group of the cylinder, effectively avoiding the core of the wire. Scratched.

4.2.6 The rear and front ends of the cylinder are supported by bearings. The middle is supported by a "large bearing". The large bearing adopts a new type of oil and gas lubrication and labyrinth seal, which has good lubrication effect, short oil return distance, fast cooling speed, multiple functions, and no need for a separate oil tank.

4.2.7 Each large bearing has a high temperature overload shutdown protection function, which is easy to maintain.

4.2.8 The cylinder body is made of thick-walled steel pipes, the internal stress is eliminated before processing, and the dynamic balance is corrected after processing, not exceeding 20 wires, and the cylinder wall thickness is 25mm.

4.2.9 The main engine adopts butterfly, multi-group, pneumatic and caliper brake device, which is sensitive and reliable in braking.

4.2.10 The main machine adopts the external wiring method, with a longer and thicker barrel, a large wire hole, and multiple well-type guide rollers, so that the wiring is smoother, no bends, no scratches, and no hopping.

4.2.11 The front and rear supporting seat and the middle large bearing seat of the main engine are all made of gray iron cast material with lost foam process, which is not shaped, fully absorbs vibration, reduces noise, and has a beautiful appearance.

4.2.12 The main engine adopts a new type of front drive, the cylinder body does not bear torque, and the cylinder body is fully prevented from cracking. Using large-modulus toothed belt transmission, effectively avoiding loss of rotation.

4.2.13 The monofilament pre-deformation device is composed of multiple sets of guide wheel discs, including a positioning disc, two fixed guide wheel discs, and a sliding guide wheel disc. The distance between each group of guide discs is adjusted according to the curvature of the wire core to realize the modification. , The whole set of device is installed on the main shaft extending from the twisting head, the structure is intuitive and easy to adjust.

4.2.14 The cylinder body is installed on an integral welded base, which is made with the help of a special platform, and then finished by a planer, which is easy to install and has high concentricity.

4.2.15 The protective cover adopts a push-pull structure, and the sliding track adopts "linear bearings". The safety cover of the whole machine does not shake and no noise; the protective cover has the function of automatic parking when the cover is opened; the operation surface of the machine body is equipped with infrared close to parking function, and multiple functions , Effectively improve the safety protection level.

4.2.16 Separately placed square, side-by-side parallel mold base, beautiful and generous, the inner cavity size is 90×90mm
