37 Milliken Conductor Rigid Stranding Lines 500/1+6+12+18

Use: 4x300mms Milliken Conductor.

Voltage: 380-415V 50Hz.

Warranty: 12 months.

Delivery time: 90-120 days.

Payment: 30% as deposit, 70% before delivery.

Material: 1.0-5.0 Cu,Al.

Product Detail
Parameters
Components
Feature

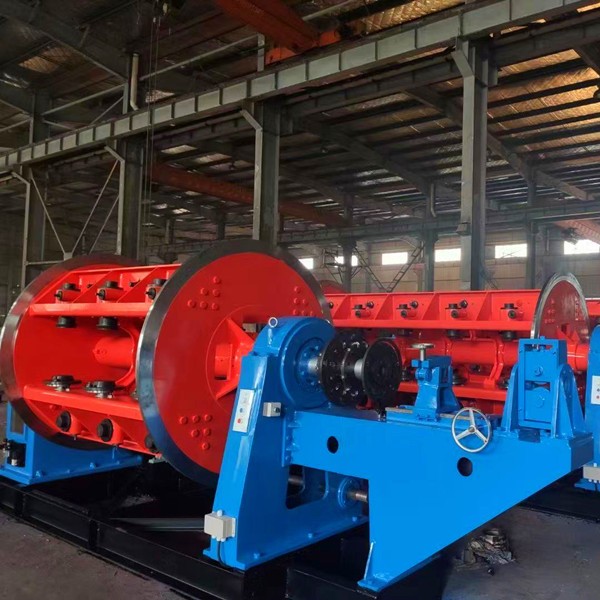

37 Milliken Conductor Rigid Stranding Lines 500/1+6+12+18.

1.Use:

It is mainly used for sector conductor stranding, circular conductor stranding, drawing and pressing, as well as the stranding of large square steel core aluminum strand. also use for milliken conductor 4x300m2.

Rotation compacting die holder for Milliken conductor.

2.1	Strand Single wire diameter		Copper φ1.5－5.0m
			Aluminumφ1.8－5.0mm
2.2	Max strand O/D		45mm
2.3	Strand cage rotation speed	6 bobbins	241r/min
		12 bobbins	216r/min
		18 bobbins	193r/min
2.4	Strand pitch	6 bobbins	44-850mm
		12 bobbins	52-937mm
		18 bobbins	61-1106mm
2.5	Traction line speed		60m/min
2.6	Pay-off bobbin size in frame		PND 500
2.7	Traction wheel size		φ2000mm
2.8	Central pay-off size		PN500-PN630
2.9	Take-up bobbin size		PN1250-PN2500
2.10	Main motor power		75Kw

3.1	φ500-630 centre Pay-off	1 set
3.2	6. 12.18 bobbins strand cage	Each 1 set
3.3	Rotation compacting unit	2 set(12 and 18 bobbin cage)
3.4	Meter counter	1 set
3.5	φ2000 double traction device	1 set
3.6	φ2000 take-up and traverse device	1 set
3.7	Electric control system	1 set
3.8	Transmission system	1 set
3.9	Safety protection fence	1 set
3.10	Anchor bolt	1 set

Instroduction of milliken conductor device:

4.3.1.6 the main machine of the reel is equipped with a single wire closing device. The wire closing die base is of quick opening design. The die base is placed on the processing track and can move back and forth in the direction of the cable travel.

4.3.2. Inner cavity size of wire closing die base 90x90mm

4.3.3. 12 disc and 18 disc main machines are equipped with rotary profiler for rolling of split conductor.

4.3.4.12 number of disc indenters 2 heads

4.3.5.18 according to the number of rolling heads 3 heads

4.3.6. Precast pitch range 1850-2050mm

4.3.7. Drive motor power 4kw

4.3.8. Working principle: the rotary profiler is driven by K series reduction motor, and the PLC coordinates the frequency converter and braking unit to complete the synchronization of start, stop and other operations with the operation of the main engine, so as to ensure the stability of prefabricated pitch.

Instroduction of milliken conductor device from ningbo capstian
